LiFePO4 Lithium Battery 12.8V 80Ah Integrate BMS With Fast Charging For Car Starting

Brand Name : Ecolite/OEM/ODM

Model Number : LFP12-801500

Place of Origin : China

MOQ : 5000

Price : Inquiry

Payment Terms : L/C, T/T

Supply Ability : 500000

Delivery Time : 1-2 months

Packaging Details : Carton Pallet Container

Model : JS-LFP12.8V80Ah

Housing Material : ABS

Max.Pulse Discharge Current(3 Sec) : 1000A

Dimension(W×D×H) : 306×174×200/220mm

Weight : 11.5kg

Cell Type-Chemistry : LiFePO4 Cell

Self Discharge : ＜2% per Month

Cycle Life(1C,80%DOD,25℃) : ＞2000cycles

Housing Protection : IP65

Contact Now

LiFePO4 Lithium Battery 12.8V 80Ah Integrate BMS With Fast Charging For Car Starting
FEATURES

Low self discharge → < 2% / month
High working voltage →＞ 12.8V
High current starting capacity → 30C
Fast charging → About 1hr full charge
Light weight → Primary lead-acid battery 1 / 2
Long service life → ＞ 2000 Cycles
Built in BMS with self balancing function
Wide temperature range
Maintenance free
Environment protection
LiFePO4 Lithium Battery 12.8V 80Ah Integrate BMS With Fast Charging For Car Starting

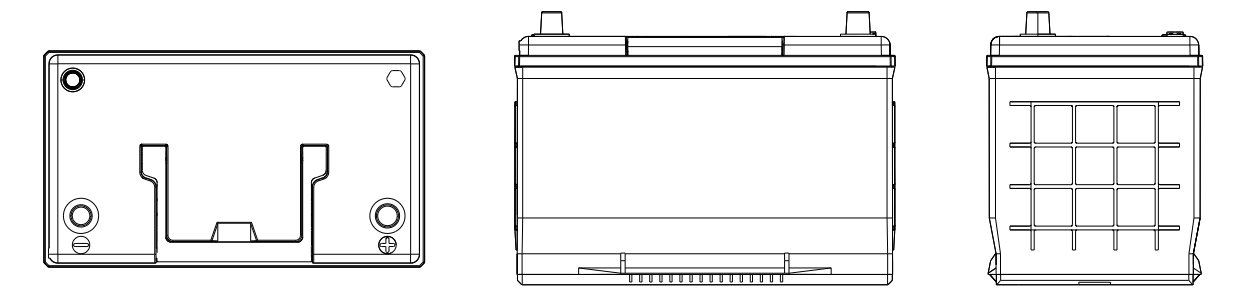

Mechanical Parameters
Dimension(W×D×H)306×174×200/220mm
Dimension(W×D×H)12.05×6.85×7.87/8.66’’
Weight11.5kg
Terminal TypePost
Battery HousingABS
Housing ProtectionIP65
Cell Type-ChemistryLiFePO4 Cell
Communication/

Electrical Parameters
Nominal Voltage12.8V
Rated Capacity80Ah
Energy1024Wh
Resistance≤12mΩ
Efficiency≥98%
Cycle Life(1C,80%DOD,25℃)＞2000cycles
Self Discharge＜2% per Month
Cell in Series/Parallel4S/4P

Discharge Parameters
Continuous Discharge Current200A
Pulse Discharge Current1200A(≤1S)
CCA(Tested by DY-2015)1200CCA
BMS Discharge Cut-off Voltage8V
Reconnect Voltage9.2V

Charge Parameters
Charge MethodCC-CV
Charge Voltage14.2~14.4V
Recommended Float Voltage13.5~13.8V
Recommended Charge Current40A
Maximum Charge Current100A
BMS Charge Cut-off Voltage15.6V

Temperature Parameters
Charge Temperature0 ℃ / 55 ℃
Discharge Temperature-20 ℃ / 60 ℃
Storage Temperature0 ℃ / 35 ℃
BMS High Temperature Cut-off65℃
